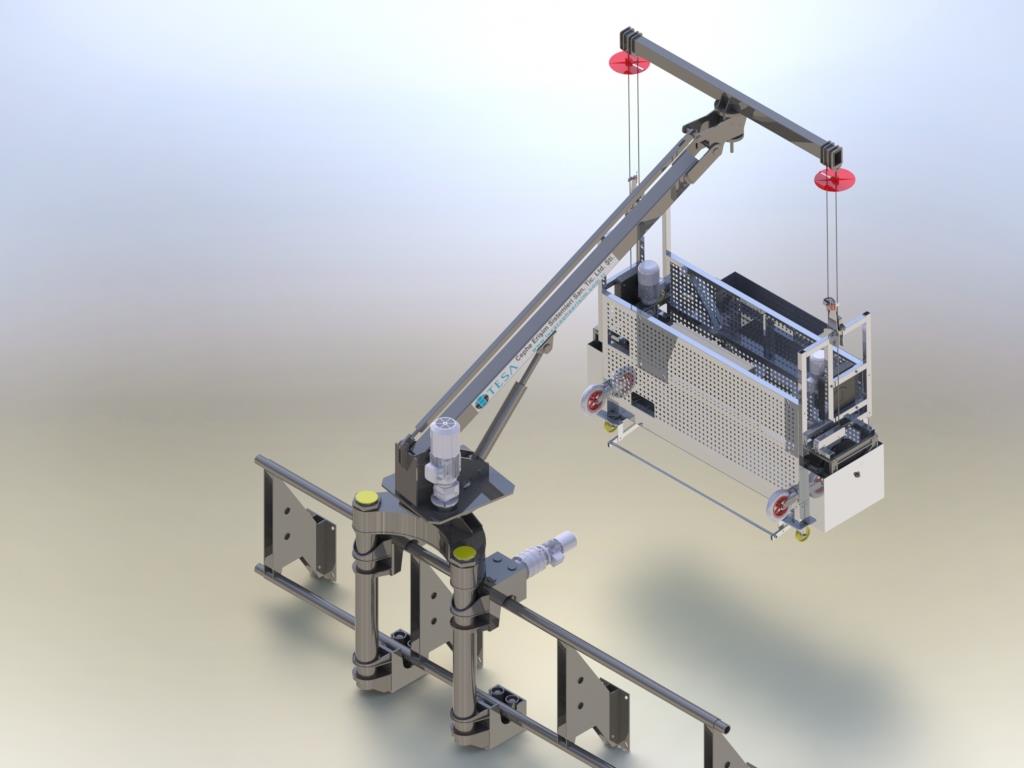

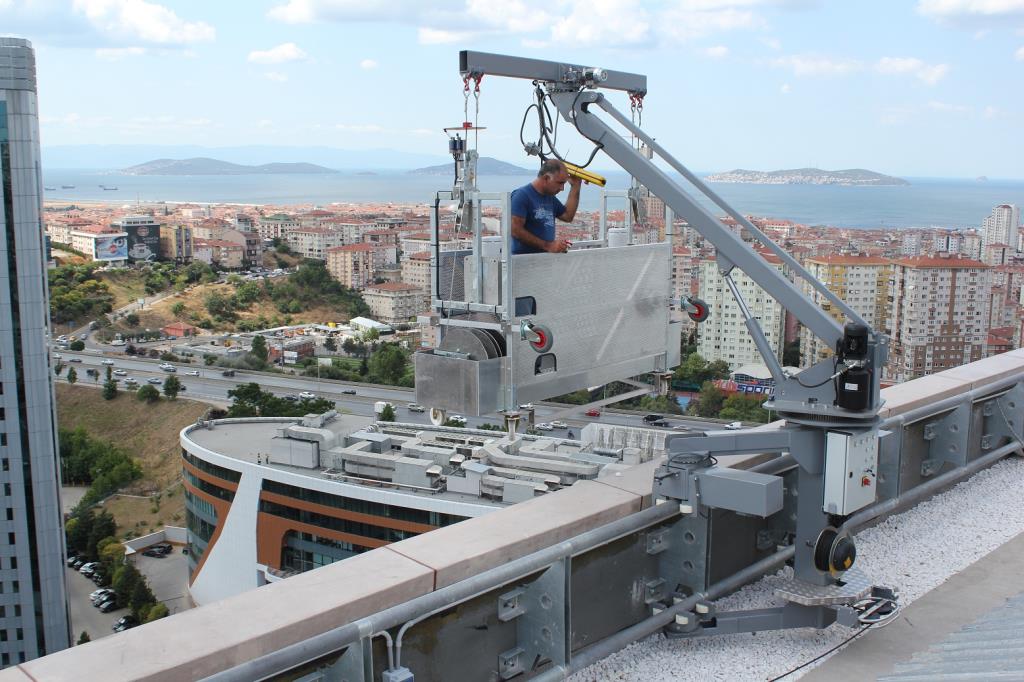

The rails can be 100x100x5mm box section, Ø89x6mm, 114x6mm pipe section rail. The parapet (reinforced concrete) inner surfaces are mounted in double rows.
The rails are mounted in such a way as to adapt to the turn of the stairs and corner according to the architectural structure of the building.
It is possible to adjust the working gap between the cradle and the front by hydraulically moving the boom.
After the cleaning process is over, the cradle is parked on the terrace.
The static loads of the brackets to be connected to the parapet are given to you so that the parapet is resistant to the load and must be approved by your static and your architects.
1) Compass group;
It is controlled by ± 75 ° right and left turn stop switches.
2) Boom group;
Standard type, size can be adjusted according to building.
3) Boom lifts;
It is controlled by 2 upper and lower limit switches.
4) Slewing of Main body- return unit;
± 175 ° turn right and left, the end of the tour is controlled by stop switches.
5) Hydraulic unit;
The hose is explosion-proof.
6) Body group;
Corrosion-resistant galvanized steel construction
7) Carrier (Walking) group; There are 2 electric, 2 without drive. It is designed according to rail type.
The end of the rail is controlled by the stop switch.
8) Cradle group; It is variable type according to machine and building type.
The safe transport capacity of the cradle is 240 kg. (CE-EN 1808 Facade Transportation System Standard)
1 unit AP- L200 Aluminum Platform
2 Alpinist Power brand / climbing mechanism (380V, 50 Hz, 6 m / min.)
2 Blockstop Safety Rope Brake
1 Control Panels
4 pieces Rope Picking Drum (Motorized)
4 Upper Limit Switches
1 unit Lower level cutter Bara (Tribbar)
1 Energy Collecting Box
CE16A Plug and Power Cable
2 Air Retainer Tires
4 pcs Undercarriage Wheel
4 pieces 8.3 mm 6x19 Oil Free Galvanized Steel Wire Rope
9) Balance rod group;
Works synchronously with compass and body.
