Telescopic Boom Systems

It is possible to adjust the working gap between the basket and the front by hydraulically moving the boom.

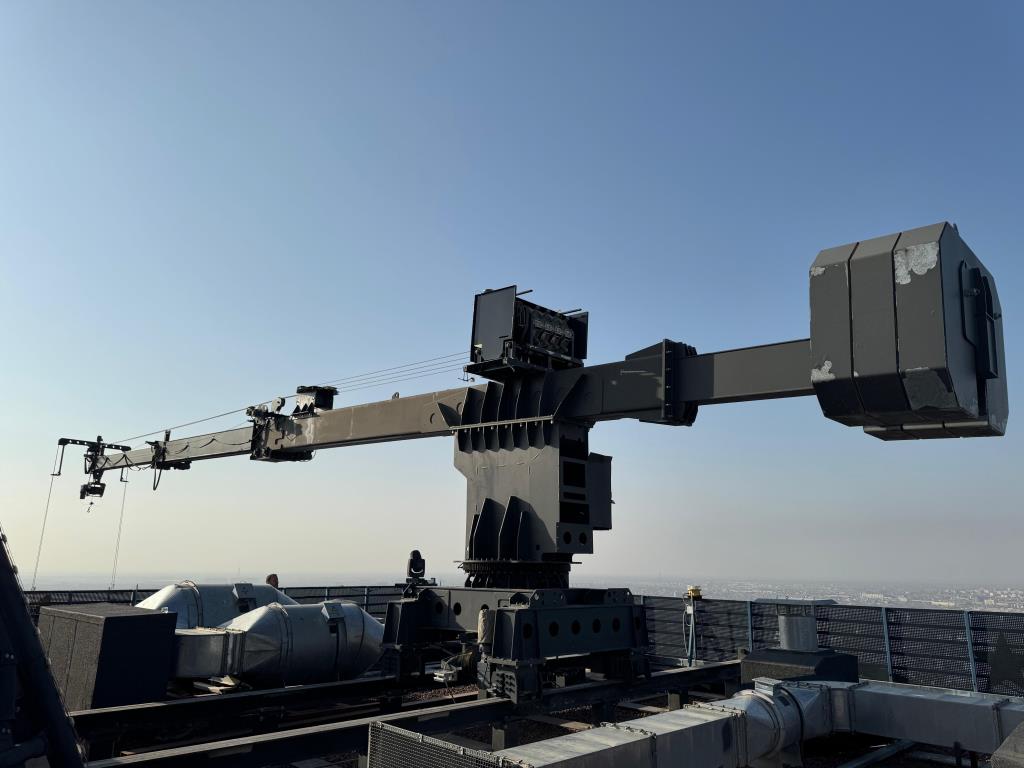

After the window cleaning work is finished, the cradle is parked on the terrace.

During operation, the system is equipped with a terrace rail so that the system can be used without damaging the building.

The selection of rail types and other equipments suitable for the architectural structure of the building is examined by our technical staff in place and the alternative solutions are presented together with the cost, and the decision maker is suggested optimum solutions.

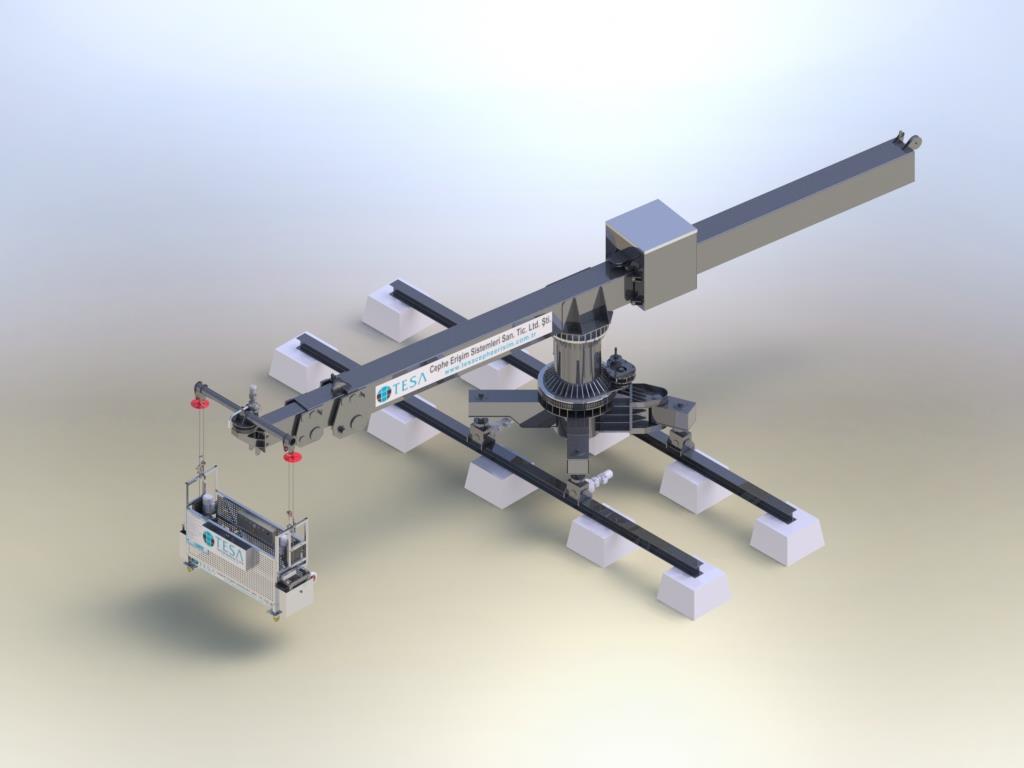

Thanks to the telescopic boom, it is possible to reach the desired working distance from a single point.

1) Compass group; Mechanism with stop switch at the end of the tour which can turn 340 degrees.
2) Boom group; Telescopic type with open / closed limit switch at 10 cm / sec opening / closing speed.
3) Boom drive lifts; Telescopic or segmented type.
4) Boom lifts; 2 with upper and lower limit switch.
5) Belly return unit; It can turn 340 degrees, end stop switch with tour.
6) Body group; Corrosion-resistant all steel construction.
7) Hydraulic unit; The hose is explosion-proof.
8) Counterweight group; It is produced from casting or hair material according to machine type.
9) Carrier (Walking) group; There are 2 electric motors, 4 without 2 motors, the end of the rail is the stop switch.
10) Crdale group; It is variable type according to machine and building type, there is a basement safety bar.
